ADS Product Datasheets
Anti-Drone System subsystems
Six fielded subsystems that operate standalone or as one fused engagement chain. Open a subsystem for its full datasheet, imagery and deployment case studies. Specifications are indicative and subject to final configuration, integration, regulatory approvals and customer requirements.
Product 01 / Command, control & AI fusion
Integrated Command & Control (C2) System
Configurable AI-enabled sensor fusion, threat prioritisation and coordinated counter-UAS response management.
300+ tracks
Simultaneous capacity
Multi-sensor
Unified operational picture
Fixed · mobile · cloud
Configurable deployment
Product 02 / Passive RF sensing & direction finding

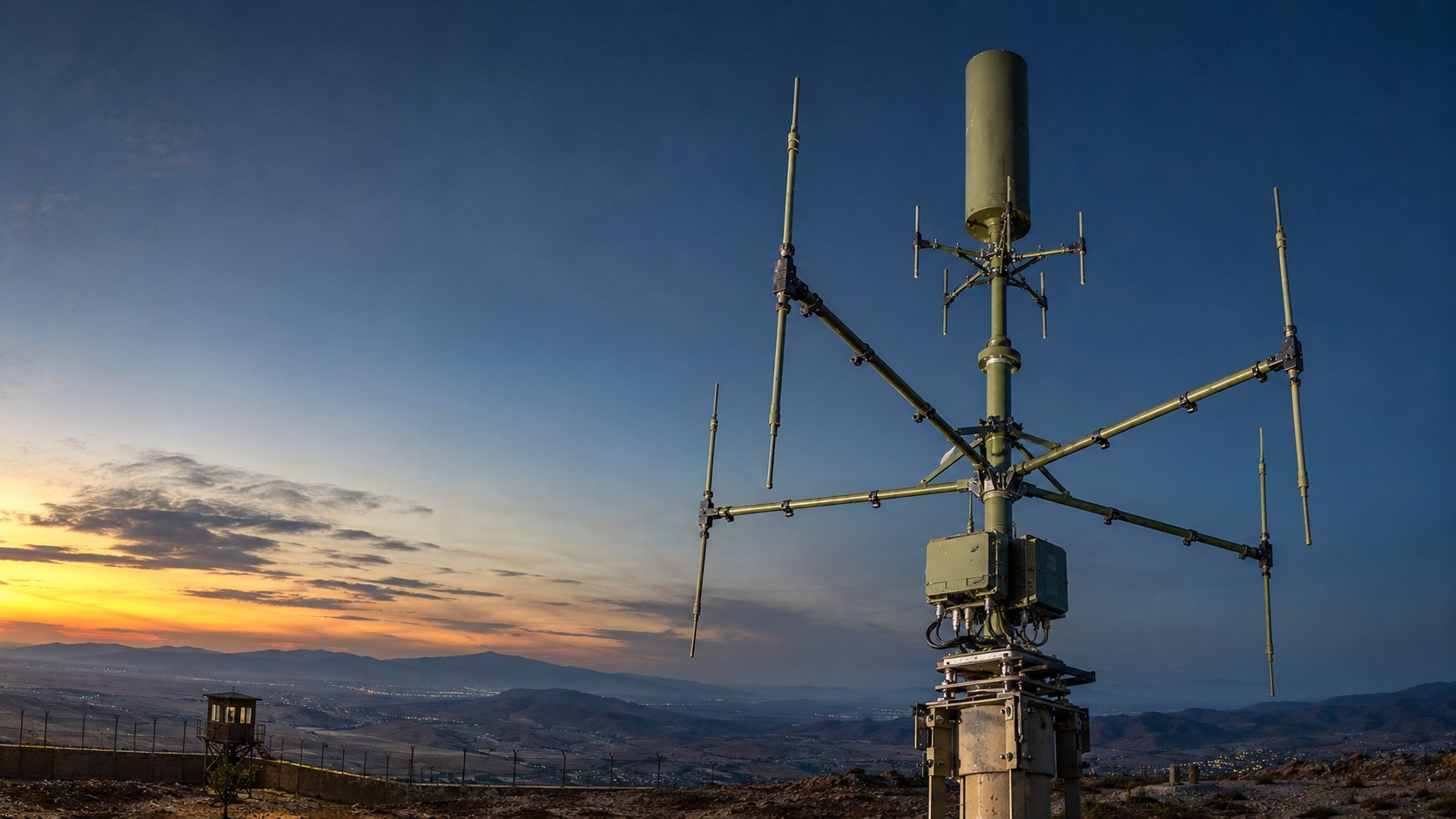

RF Detection & Direction-Finding Subsystem
Wideband passive detection, classification and bearing generation from 100 MHz to 8 GHz.
100 MHz – 8 GHz
Frequency coverage
Up to 15 km
Detection range
≤ 1° RMS
Fixed-frequency DF accuracy
Product 03 / Electro-optical identification & tracking

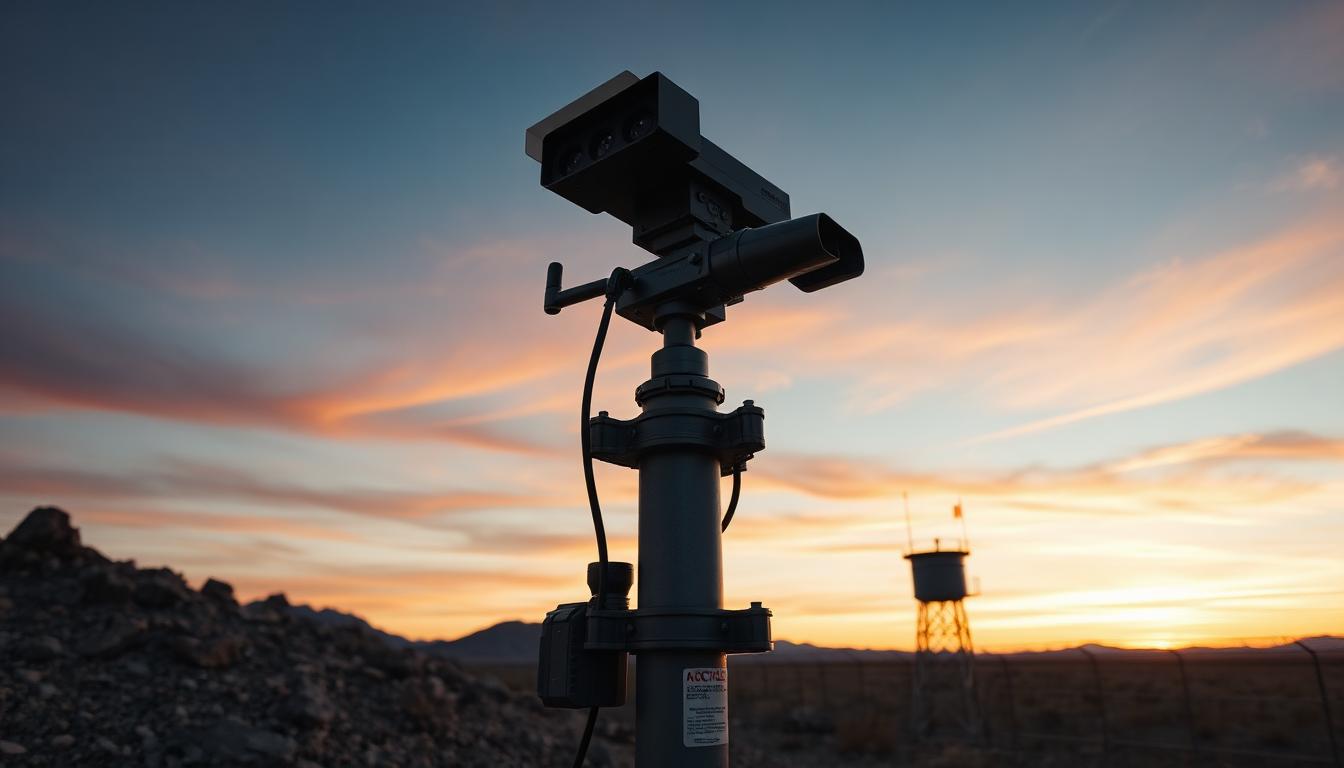

EO/IR Camera & Auto-Tracking Subsystem
Stabilised day/night payload slaved to fused DF bearings for positive visual identification.
3 km
Day detection / tracking
2 km
Night detection / tracking
Optional 3 km
Laser range finder
Product 04 / Multi-channel RF countermeasures

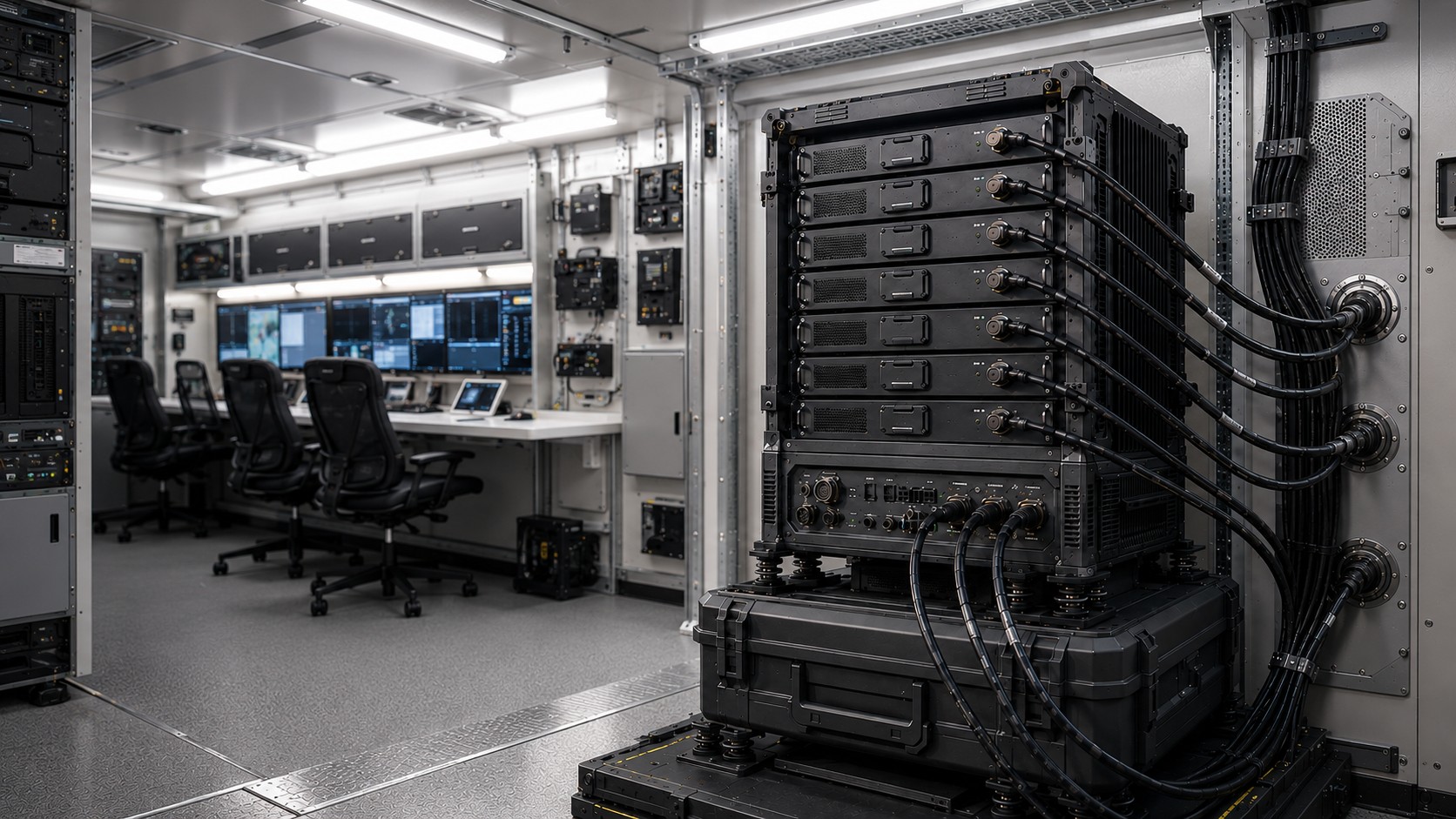

RF Wideband Jammer / COMINT Jammer
Scalable multi-exciter jamming of control, telemetry, video and COMINT emitters.
100 MHz – 8 GHz
System coverage
Up to 12
Customisable exciters
Up to 2 kW
Aggregate output power
Product 05 / Optional GNSS denial software module

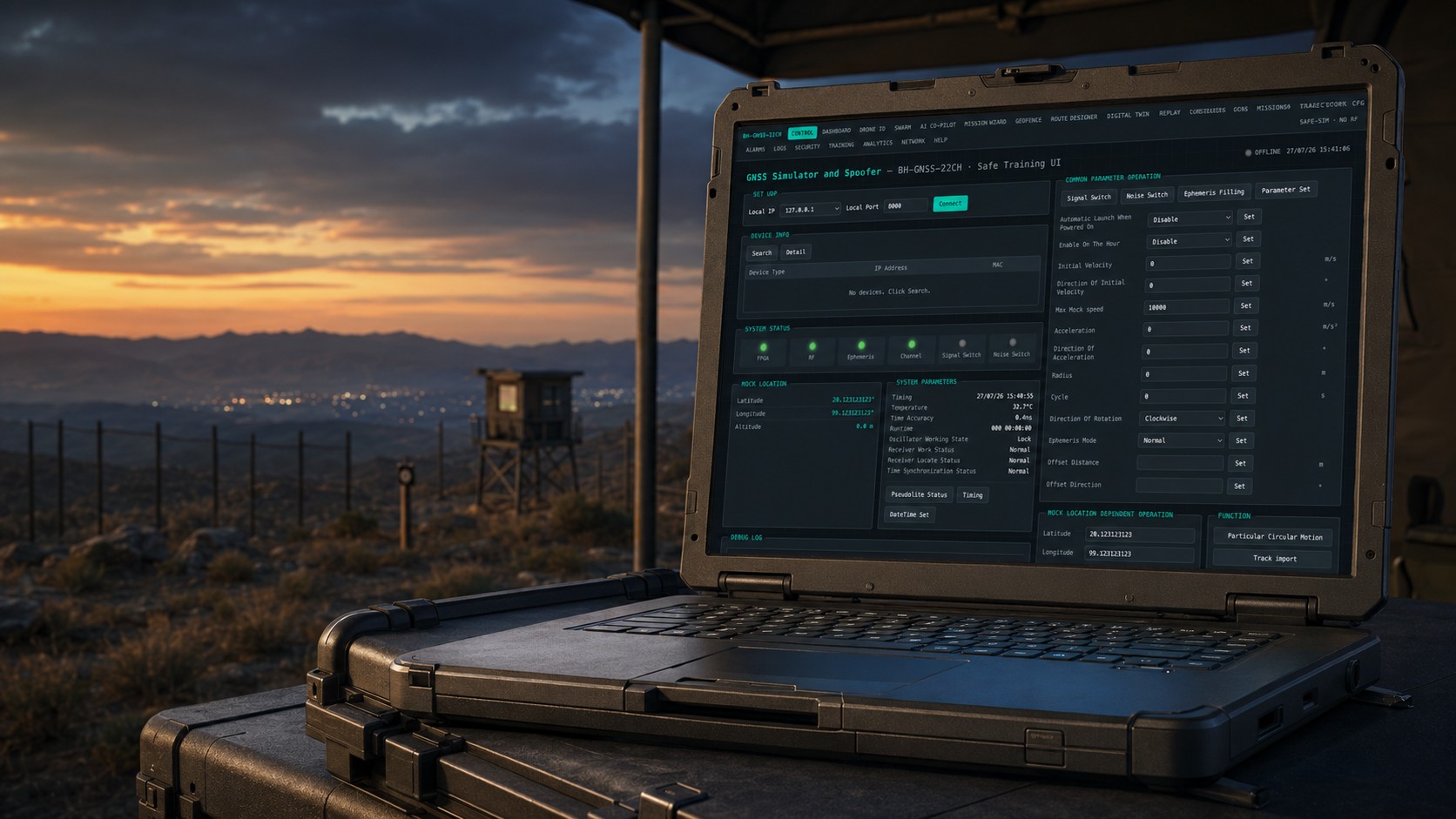

GNSS Jammer / Spoofer
Software-controlled GNSS denial and spoofing, cued through the C2 engagement chain.
Multi-channel
GNSS module
Cue-based
Employment mode
C2-integrated
Engagement chain
Product 06 / Active radar detection & tracking
Fixed & Rotational AESA Radar Surveillance System
X-band electronic-beam surveillance for long-range drone detection, multi-target tracking and automated sensor cueing.
Up to 10 km
Drone detection
200+ tracks
Simultaneous tracking
Product 07 / Maritime domain awareness

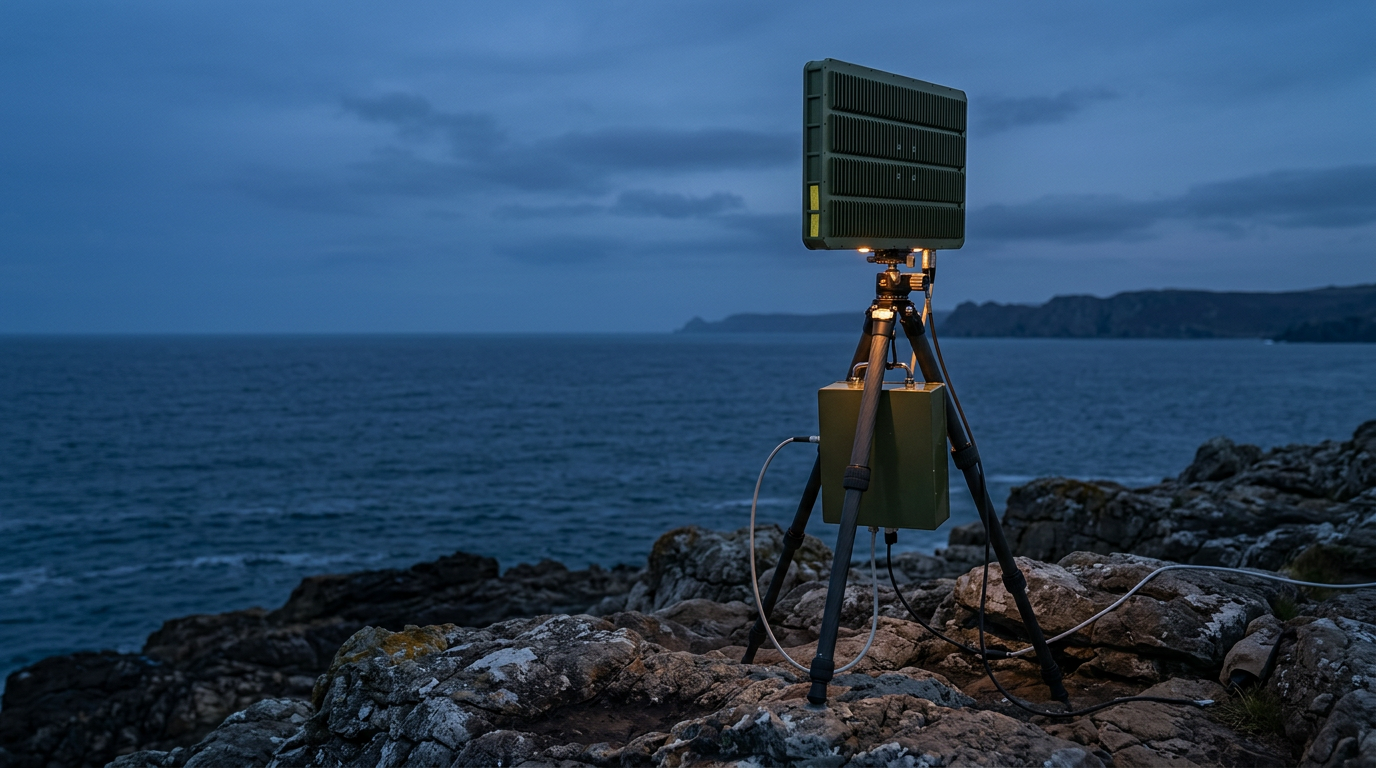

Coastal Surveillance Radar System
Solid-state coastal radar for persistent detection and tracking of small boats, vessels and low-altitude aerial targets across the littoral.
Up to 50 km
Vessel detection
Wide-area
Continuous azimuth cover
500+ tracks
Simultaneous capacity
